The Smallest Tool With the Biggest Impact on Stitch Quality
Needle installation seems simple: push the needle up into the clamp and tighten the set screw. But the rotational orientation of the needle -- the flat facing the correct direction, the groove aligned with the hook -- is critical to consistent stitch formation. An incorrectly oriented needle produces skipped stitches, thread breaks, and stitch quality problems that no amount of tension adjustment will fix. The Needle Alignment Magnet solves this problem with elegant simplicity: a small strong magnet positioned at the machine's needle bar holds the needle in the correct rotational position during installation, freeing both hands to tighten the set screw without the needle rotating out of position.
How It Works

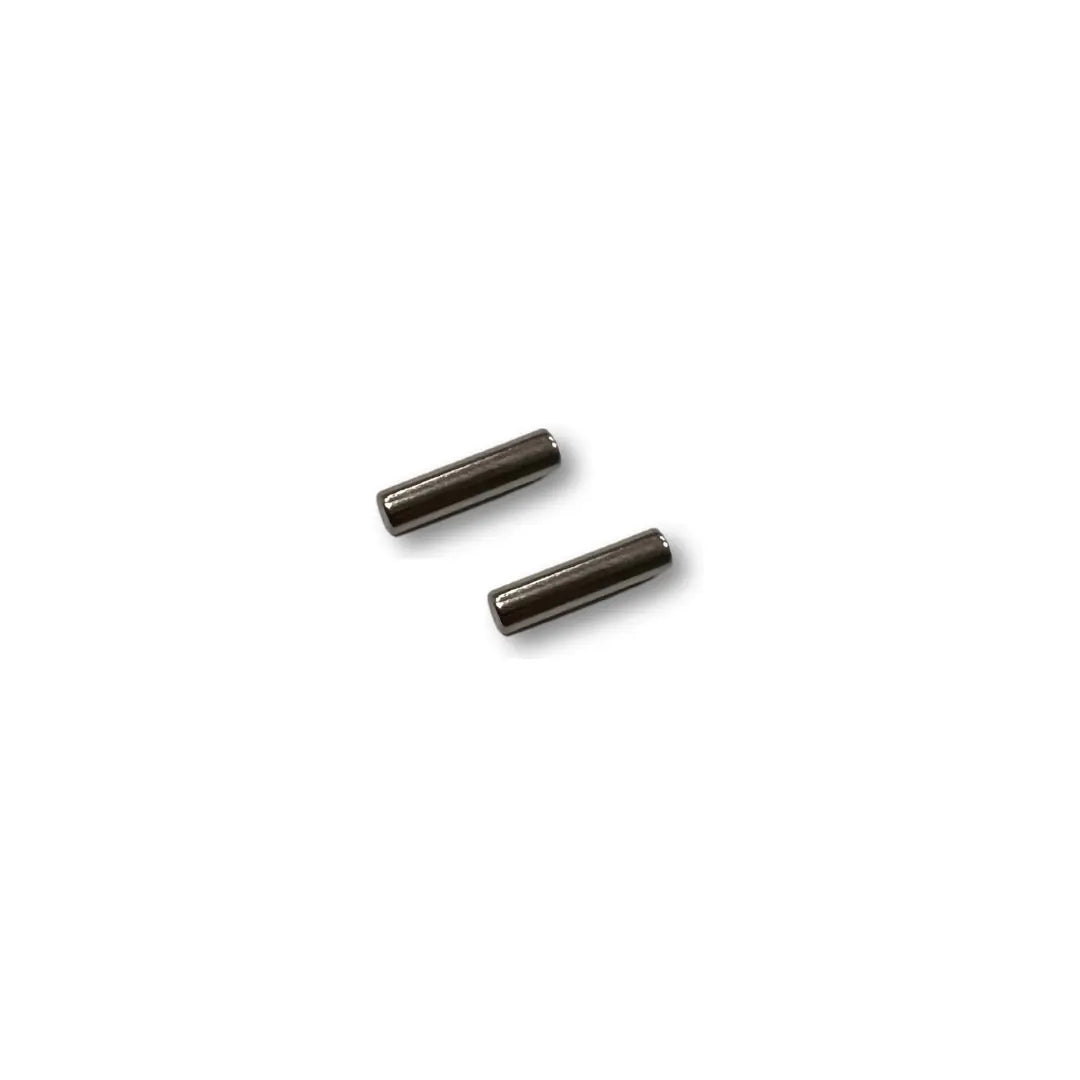

The Needle Alignment Magnet is approximately half an inch long and is applied to the needle bar of your longarm machine at the position that holds the needle's flat side correctly aligned for your machine's hook geometry. When you insert a new needle, the magnet's field holds the flat in the correct orientation as you push the needle up and tighten the clamp screw. Once the screw is tightened, the magnet's job is done -- the needle is correctly installed every time, consistently, without the guesswork of trying to hold the flat in position with one finger while tightening with the other hand.
Why Correct Needle Orientation Matters
The needle's groove and flat side must face specific directions relative to the machine's rotary hook to form a stitch properly. The hook tip catches the thread loop that forms on the groove side of the needle -- if the groove faces the wrong direction, the hook misses the loop and you get a skipped stitch. This is why a freshly changed needle that was installed slightly rotated can immediately produce consistent skipped stitches even though the needle itself is brand new. The Alignment Magnet eliminates this installation error entirely.
Top 10 Benefits
- Eliminates Needle Rotation During Installation -- The primary function. Correct orientation every time, no guesswork.
- Reduces Skipped Stitches From Improper Orientation -- The most common benefit cited by quilters who add this tool.
- Speeds Up Needle Changes -- Both hands free to position and tighten rather than one hand balancing the needle.
- Reduces Frustration on Needle Changes -- Needle changes become a 30-second task rather than a fiddly, frustrating process.
- Particularly Helpful for Less Experienced Operators -- New longarm owners or studio employees who change needles less frequently benefit immediately.
- Works on All Gammill Machine Configurations -- Compatible with standard Gammill needle bar geometry.
- Two Pack for Redundancy -- Comes as a 2-pack so you have a backup if one is misplaced (they are very small).
- Permanent Installation -- Apply once to your machine, leave it in place, and benefit from correct needle installation on every subsequent needle change.
- Inexpensive Insurance Against Stitch Quality Problems -- At its price point, there is no reason not to have this on every longarm machine.
- Great for Teaching Studios -- Ensures students and new operators install needles correctly without extensive instruction.
Installation
Position the magnet on the needle bar at the location that aligns with the flat of a correctly installed needle. Press firmly -- the magnetic force holds it in place on the ferrous needle bar. No tools, no adhesive, no modification to the machine. To reposition, simply slide it to the new location.
Frequently Asked Questions
Will the magnet affect the machine's stitch formation or electronic components?
The magnet is small and localized to the needle bar area. It does not affect thread tension, hook timing, or electronic components when positioned correctly on the needle bar. It has been used safely on Gammill machines by thousands of longarm quilters.
Which direction should the magnet face on the needle bar?
Position it to hold the needle's flat side facing the correct direction for your specific machine model. For Gammill machines, the flat typically faces away from the hook. Consult your machine's manual or the product instructions for your specific configuration.
Is the 2-pack necessary?
Given how small the magnet is, having a backup is genuinely useful. The 2-pack is the smart choice -- use one, store the other in your needle and parts kit as a backup.
Shop Needle Alignment Magnet (2 Pack)
Half an inch of steel. Correctly installed needles every time. At this price, there is no reason every Gammill owner should not have one.
